HMX Sunset Gleam Linear PCB Mount Switch

Product image 1
1 / 11

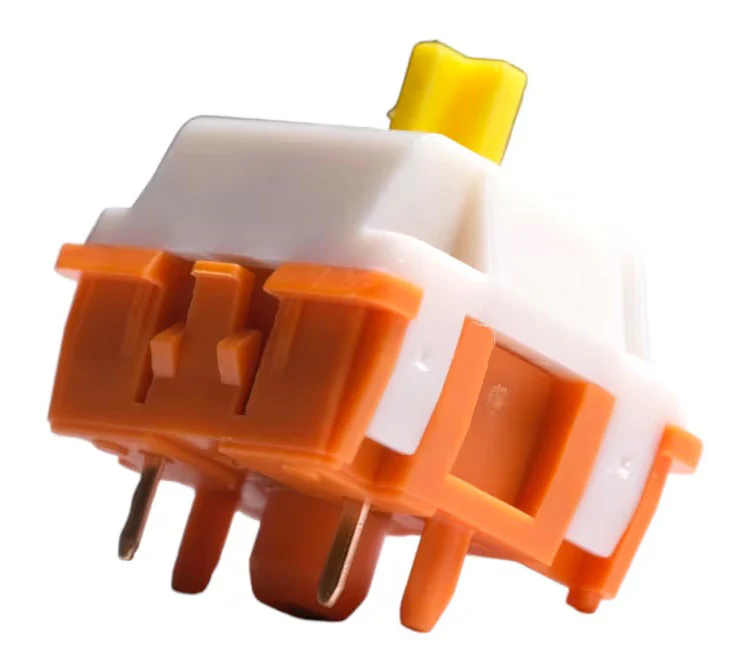

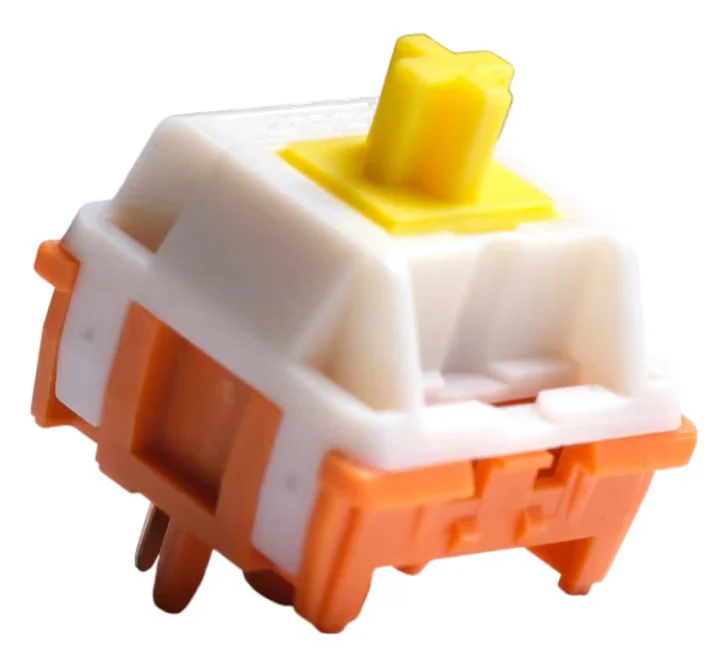

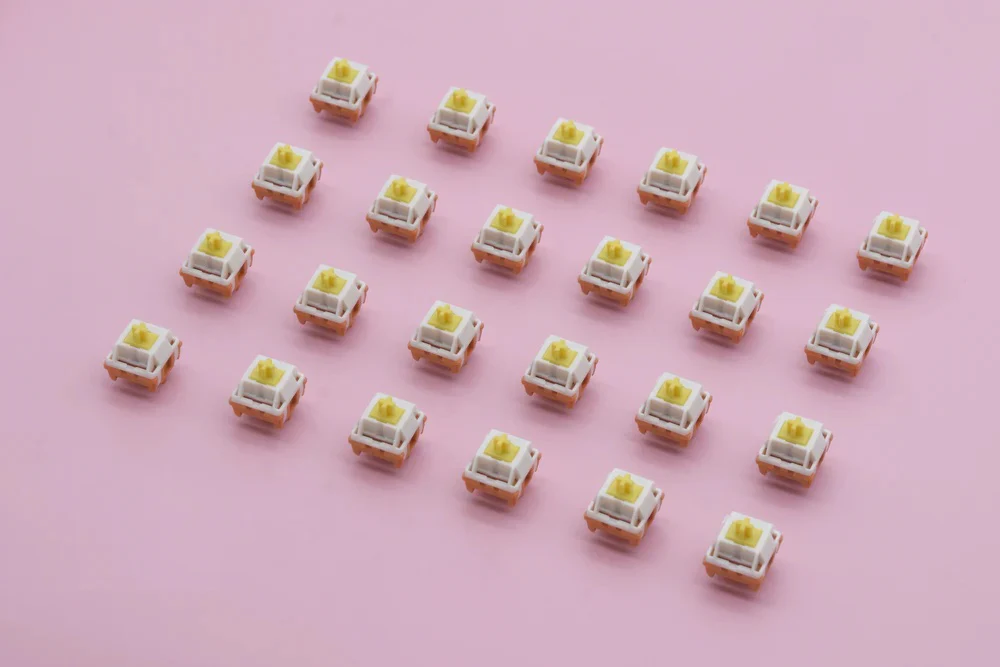

HMX Sunset Gleam Linear PCB Mount Switch

  • 37g / 42g / 50g actuation force
  • 41g / 48g / 56g bottom-out force
  • 2.00mm pretravel
  • 3.50mm total travel (50g has 3.9mm total travel)
  • Polycarbonate top housing
  • PA12 nylon bottom housing
  • LY stem
  • 22mm KOS stainless steel single-stage spring
  • Also known as the HMX Duck Duck switch
  • Please note: the 37g and 42g versions have yellow stems. The 50g version has orange stems.
  • Factory lubed
Select Actuation Force
From $0.07

Original: $0.24

-71%
HMX Sunset Gleam Linear PCB Mount Switch—

$0.24

$0.07

Product Information

Shipping & Returns

Description

  • 37g / 42g / 50g actuation force
  • 41g / 48g / 56g bottom-out force
  • 2.00mm pretravel
  • 3.50mm total travel (50g has 3.9mm total travel)
  • Polycarbonate top housing
  • PA12 nylon bottom housing
  • LY stem
  • 22mm KOS stainless steel single-stage spring
  • Also known as the HMX Duck Duck switch
  • Please note: the 37g and 42g versions have yellow stems. The 50g version has orange stems.
  • Factory lubed
